Quick Detail:

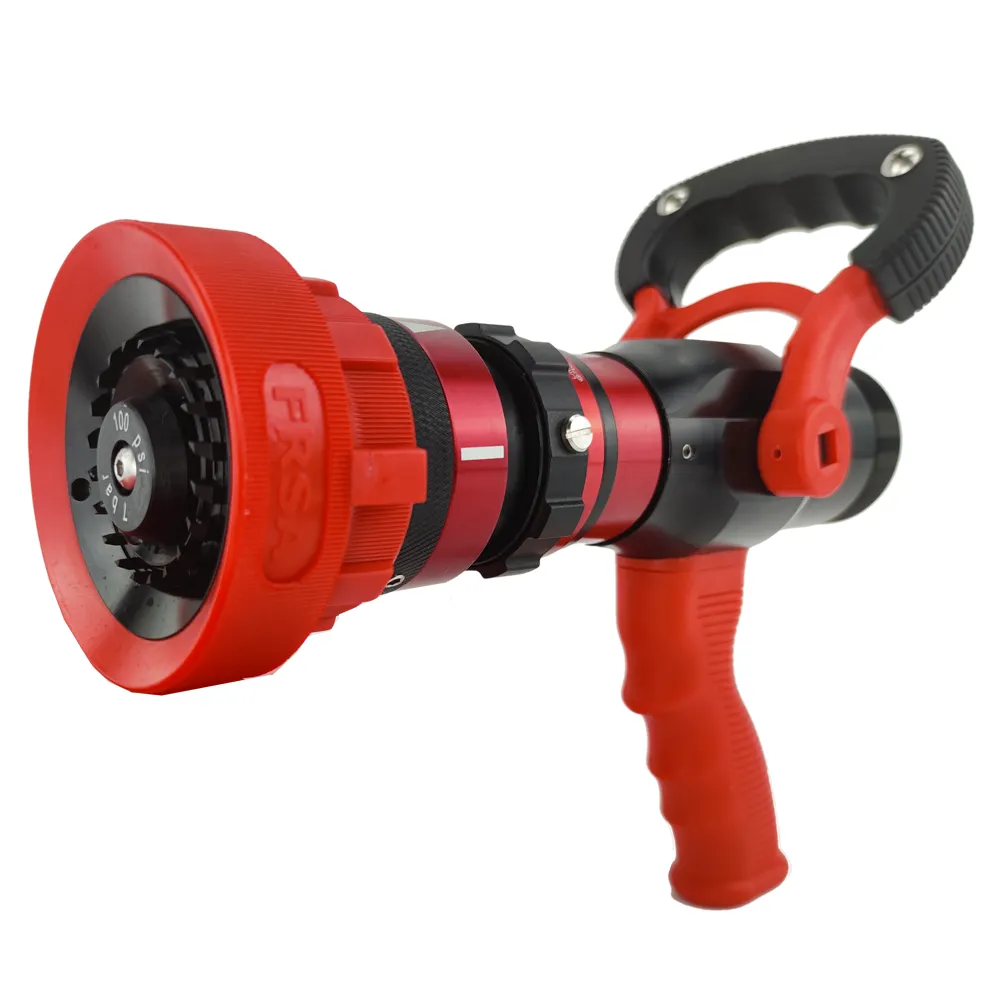

FIRENOZZLE
FIREHOSE NOZZLE
115-475L ADJUST
ALUMINUM ALLOY BODY
Description:
Multifunctional water nozzle include direct flow, spray, and blooming; the flow rate can also be adjusted to appropriate working conditions according to the fire extinguishing conditions. Rotating the gun head can adjust the DC spray bloom. In addition, adjusting the flow rate and rotating the gun head to adjust the spray mode are two separate functions, but they influence each other. At the fire scene, firefighters use multi-functional water guns, which can spray open flames in a direct stream from a long distance. They can also use spray mode to cool down a large area and purify smoke in the air without changing guns. The hand-operated switch is also convenient for turning the water gun on and off. Finally, the water gun is equipped with an anti-knot interface, which can effectively prevent the water hose from rotating due to pulling on it.
Applications:
Fire Fighting/Rescuing
Specifications:
| Weight(Except Coupling) | Approx 1.6kg | |
| Material | Body | aluminum |
| Valve | ABS | |
| Pistol Grip handle | ABS | |
| Bumper | Rubber | |
| Working pressure | 100PSI ( 7 bar ) | |
| Max. pressure | 360PSI ( 25bar ) | |
| Max. fog angle | 120° | |
| Throw Range | 40m @ 7bar | |
| Flow rate | 30gpm(115 L/m) | @7Bar |
| 60gpm(230 L/m) | @7Bar | |
| 95gpm(360 L/m) | @7Bar | |
| 125gpm(475 L/m) | @7Bar | |
| FLUSH | ||
| Inlet Size | 1.5” (40mm)2 ”(50mm),2.5” (65mm) | |
| Connection coupling | Storz,Instantaneous,NH,GOST,etc. | |
Competitive Advantage:
Pattern Identification
Hard Anodized Aluminum labels,Laser Engraved
Simple to operate (1/4 turn from straight stream to fog)
Raised lug marks straight stream for
limited visibility operations
Easy to service & repair.
Compatible with Quick Attach Foam Tube
Advantages of multi-purpose water guns:
1) Multi-functional application: it can be used in direct current or spray mode alone, or in combined mode, to extinguish fires and protect itself at the same time
2) Combining the advantages of DC fire guns and spray fire guns: DC water is a solid water column with strong clustering and penetrating properties;
3) When spraying, the gun head has rotating teeth to cut the water mist, which has high safety protection.
